ISCA-6404213

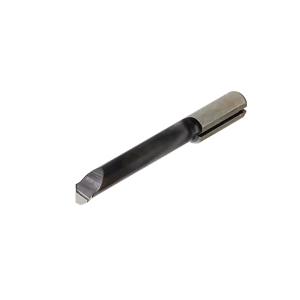

Iscar 6404213 Boring Bar 6.8 mm Dia Min Bore 30 mm Max Bore Depth 45 mm OAL Solid Carbide
Product information
Description
Iscar Boring Bar Series: 731 6.8 mm Minimum Bore Dia 30 mm Maximum Bore Depth 45 mm Overall Length 7 mm Shank Dia Right Hand Cutting Solid Carbide PVD Coated 2.8 mm Width Offset
Additional details
Product details
- IC908 Grade - A hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions 6.3 mm front end width 0.6 mm radial groove depth 0.2 mm corner radius +/- 0.05 mm corner radius tolerance ISO Code: PICCO R 050.7-30C IC908
Attributes
- Cutting Direction: Right Hand
- Finish: PVD Coated
- Material: Solid Carbide
- Maximum Bore Depth: 30 mm
- Minimum Bore Diameter: 6.8 mm
- Overall Length: 45 mm
- Shank Diameter: 7 mm
- Width Offset: 2.8 mm
