ISCA-5623375

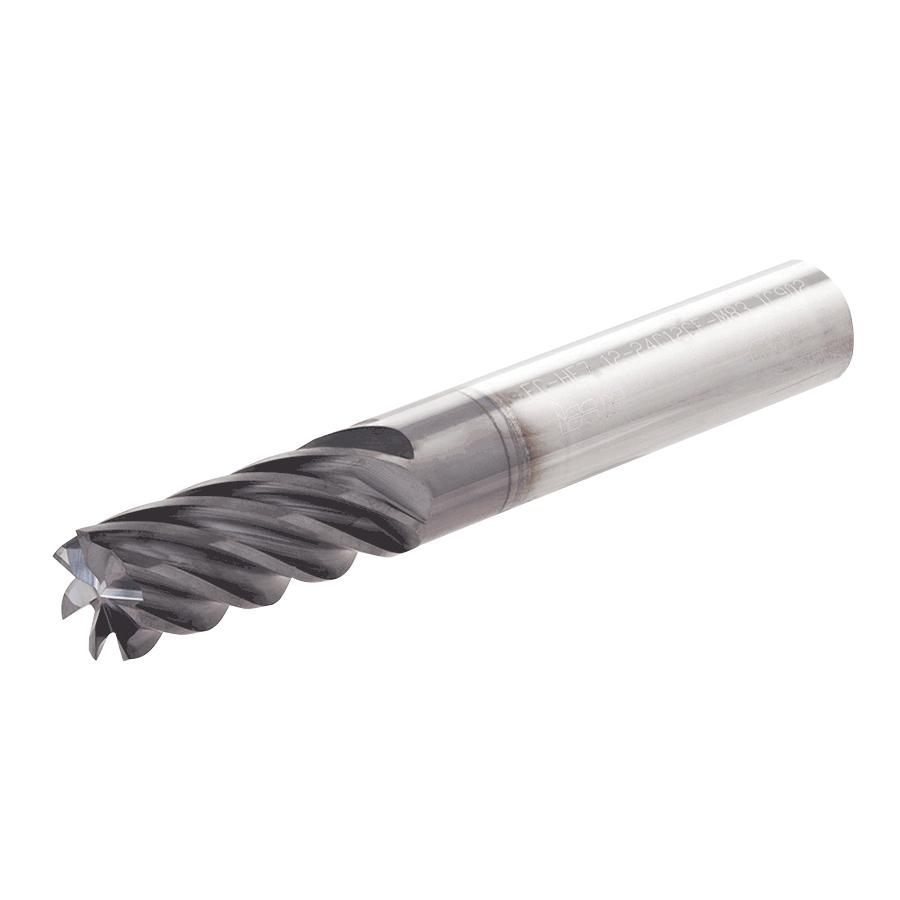

Iscar 5623375 SOLIDMILL CHATTERFREE Regular Length Single End End Mill 8 mm Dia Cutter 3 mm Corner Radius 16 mm Length of Cut 7 Flutes 8 mm Dia Shank 63 mm OAL PVD-TiAlN Coated
Product information
Description
Iscar End Mill Regular Length Single End Series: SOLIDMILL CHATTERFREE 8 mm Cutter Dia 3 mm Corner Radius 63 mm Overall Length 16 mm Length of Cut 7 Flutes Right Spiral Flute 8 mm Shank Dia Right Hand Cutting 37 deg Helix Angle Round Shank ISO Code: EC-H7 08-16C08CF-M63 Ultra Fine Grain Solid Carbide PVD-TiAlN Coated
Additional details
Product details
- IC902 grade - ultra fine carbide grain with 9 cobalt TiAlN PVD coated Used for machining hardened steel 7-flute end mills with different helix and variable pitch for chatter free high speed/trochoidal milling and finishing operations
Attributes
- Cutter Diameter: 8 mm
- Cutting Direction: Right Hand
- Flute Type: Right Spiral
- Helix Angle: 37 deg
- Length of Cut: 16 mm
- Material: Ultra Fine Grain Solid Carbide
- Number of Flutes: 7
- Overall Length: 63 mm
- Shank Diameter: 8 mm
- Shank Type: Round
