CLEC-81657

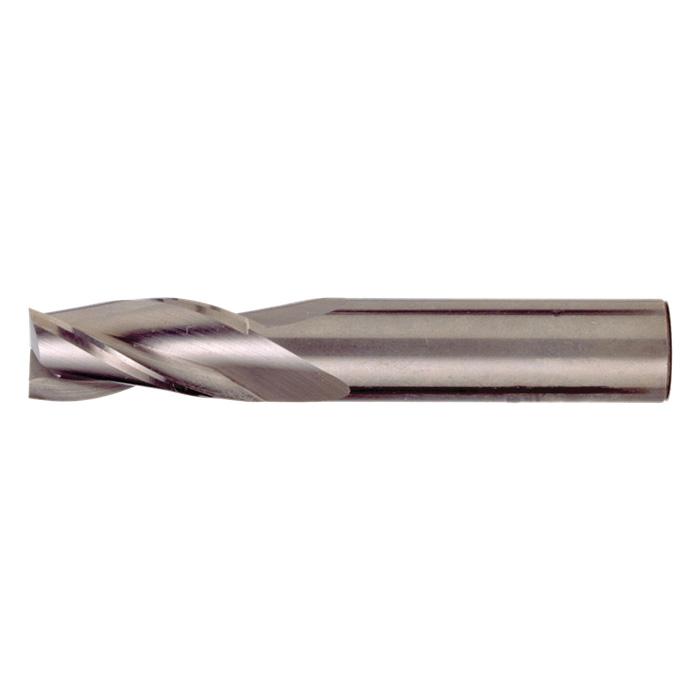

Cleveland® C81657 CEM-SE-3 Center Cutting General Purpose Regular Length Single End Square End End Mill 1/16 in Dia Cutter 3/16 in Length of Cut 3 Flutes 1/8 in Dia Shank 1-1/2 in OAL TiAlN Coated
Product information
Description
Cleveland® End Mill Center Cutting General Purpose Regular Length Single End Square End Series: CEM-SE-3 1/16 in Diameter Cutter 1-1/2 in Overall Length 3/16 in Length of Cut 3 Flutes Spiral Flute 1/8 in Shank Diameter Right Hand Cutting Direction 30 deg Helix Angle Straight Shank Solid Carbide TiAlN Coated
Additional details
Product details
- 10 Cobalt submicron grain carbide substrate 30 deg right hand spiral right hand cut helix designed for maximum chip clearance Use in general milling applications in medium to low carbon steels cast iron non-ferrous light metals and plastics 3-Flute end mills provide a compromise between the chip clearance of a 2-flute tool and the rigidity and wear resistance of a 4-flute tool especially useful for many slotting operations -0.002 in cutting diameter tolerance -0.0005 in (h6) shank diameter tolerance Applicable on steel stainless steel cast iron and non-ferrous materials

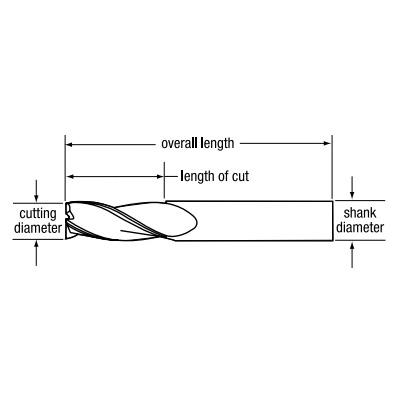

Attributes
- Cutter Diameter: 1/16 in
- Cutting Direction: Right Hand
- Flute Type: Spiral
- Helix Angle: 30 deg
- Length of Cut: 3/16 in
- Material: Solid Carbide
- Number of Flutes: 3
- Overall Length: 1-1/2 in
- Shank Diameter: 1/8 in
- Shank Type: Straight
