CLEC-61003

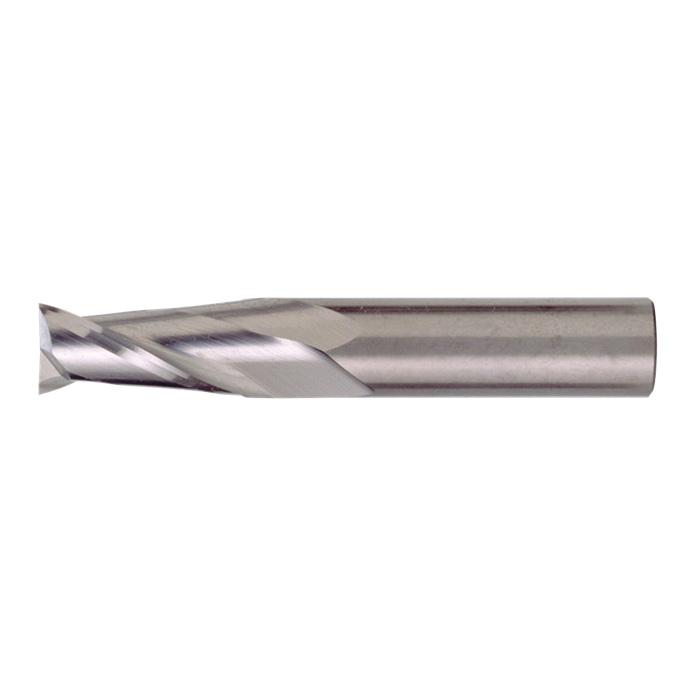

Cleveland® C61003 CEM-SE-2 Center Cutting General Purpose Single End Square End Stub Length End Mill 1/16 in Dia Cutter 1/8 in Length of Cut 2 Flutes 1/8 in Dia Shank 1-1/2 in OAL Bright
Product information
Description
Cleveland® End Mill Center Cutting General Purpose Single End Square End Stub Length Series: CEM-SE-2 1/16 in Diameter Cutter 1-1/2 in Overall Length 1/8 in Length of Cut 2 Flutes Spiral Flute 1/8 in Shank Diameter Right Hand Cutting Direction 35 deg Helix Angle Straight Shank Solid Carbide Bright
Additional details
Product details
- 10 Cobalt submicron grain carbide substrate 30 deg right hand spiral right hand cut helix designed for maximum chip clearance Use in general milling applications in medium to low carbon steels cast iron non-ferrous light metals and plastics 2-Flute end mills are generally used for plunging slotting and heavy peripheral cuts -0.002 in cutting diameter tolerance -0.0005 in (h6) shank diameter tolerance Applicable on steel cast iron special alloys and non-ferrous materials
Attributes
- Cutter Diameter: 1/16 in
- Cutting Direction: Right Hand
- Flute Type: Spiral
- Helix Angle: 35 deg
- Length of Cut: 1/8 in
- Material: Solid Carbide
- Number of Flutes: 2
- Overall Length: 1-1/2 in
- Shank Diameter: 1/8 in
- Shank Type: Straight
