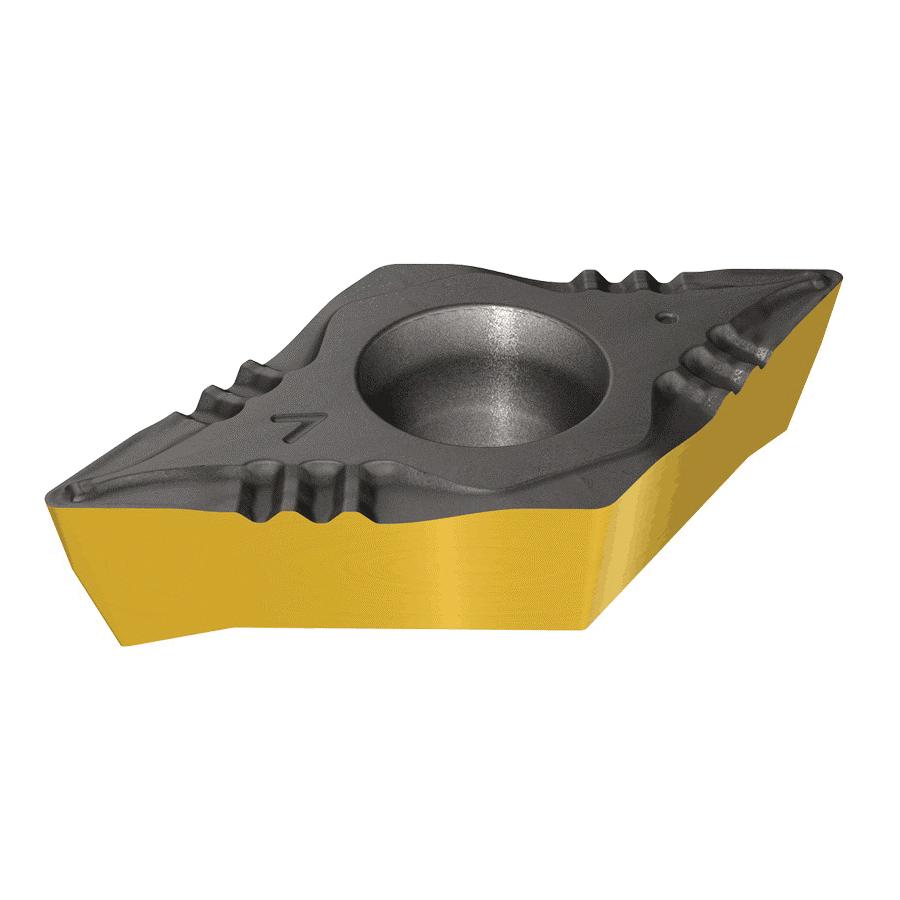

Iscar 5566871 1-Sided Turning Insert ANSI Code: DCMT 3-0-F3P IC8250 DCMT Insert Material Grade: M P 3-0 Insert Rhombic Shape 11 Seat Positive Rake For Use On Stainless Steel and Steel Carbide Manufacturer's Grade: IC8250
Product information
Description

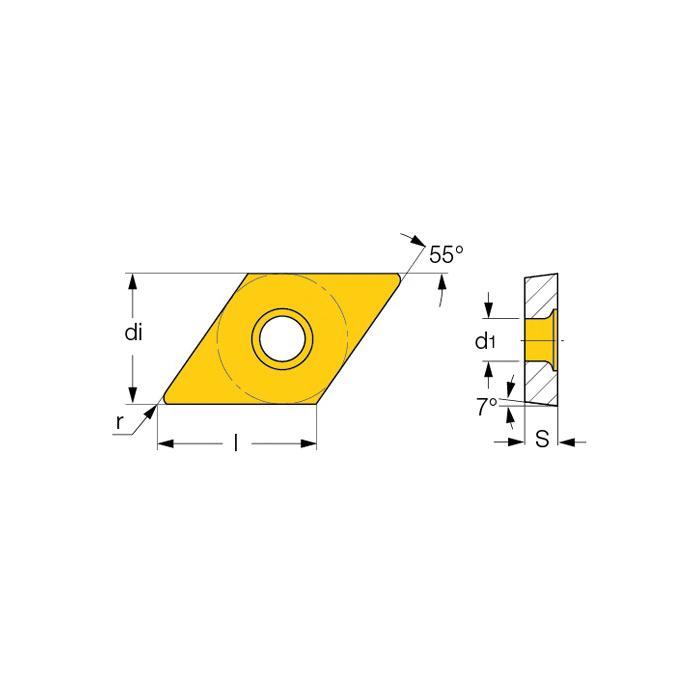

Iscar Turning Insert 1-Sided DCMT Insert 3-0 Insert Rhombic 2 mm Maximum Depth of Cut 3.97 mm Inscribed Circle 3.97 mm Thickness 11 Seat Positive Rake F3P Chipbreaker 0.2 mm Corner Radius 4.4 mm Hole Dia Manufacturer's Grade: IC8250 ANSI Code: DCMT 3-0-F3P IC8250 ISO Code: DCMT 11T302-F3P IC8250 55 deg Included Angle 7 deg Relief Angle Carbide CVD-TiCN+Al2O3+TiN Coated Material Grade: M P For Use On: Stainless Steel and Steel
Additional details
Product details
- Low cutting forces due to sharp cutting edge and a positive rake angle providing very reliable performance and excellent tool life The F3P chipbreaker has positive rake angles to allow smooth cutting and to reduce the cutting forces thus reducing wear and increasing the tool life dramatically IC8250 grade a tough substrate with a cobalt enriched layer combined with MTCVD TiCN and a thick alpha Al2O3 CVD coating Recommended for general use machining of steel in a wide range of conditions featuring high toughness and wear resistance
Attributes
- Corner Radius: 0.2 mm
- Finish: CVD-TiCN+Al2O3+TiN Coated
- Insert Size: 3-0
- Insert Style: DCMT
- ISO Code: DCMT 11T302-F3P IC8250
- Manufacturer's Grade: IC8250
- Material: Carbide
- Material Grade: M P
- Shape: Rhombic
