ISCA-5509919

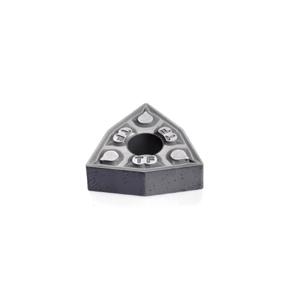

Iscar 5509919 ISOTURN 2-Sided Turning Insert ANSI Code: WNMG 431-TF IC6025 WNMG Insert Material Grade: M 431 Insert Trigon Shape 08 Seat Positive Rake For Use On Stainless Steel Carbide Manufacturer's Grade: IC6025
Product information
Description
Iscar Turning Insert 2-Sided Series: ISOTURN WNMG Insert 431 Insert Trigon 4 mm Maximum Depth of Cut 12.7 mm Inscribed Circle 4.76 mm Thickness 08 Seat Positive Rake TF Chipbreaker 0.4 mm Corner Radius 0.203 in Hole Dia Manufacturer's Grade: IC6025 ANSI Code: WNMG 431-TF IC6025 ISO Code: WNMG 080404-TF IC6025 80 deg Included Angle 0 deg Relief Angle Carbide CVD-TiCN+Al2O3+TiN Coated Material Grade: M For Use On: Stainless Steel
Additional details
Product details
- Double-sided trigon insert positive rake angle that varies along the edge to negative in order to prevent chipping Special design reduces cratering Chipbreaker on both sides with hole
Attributes
- Corner Radius: 0.4 mm
- Finish: CVD-TiCN+Al2O3+TiN Coated
- Insert Size: 431
- Insert Style: WNMG
- ISO Code: WNMG 080404-TF IC6025
- Manufacturer's Grade: IC6025
- Material: Carbide
- Material Grade: M
- Series: ISOTURN
- Shape: Trigon
